| Name: | SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine | Stations: | 6 |
|---|---|---|---|
| Weight: | (450 ± 5) g | Stroke: | (76 ± 2) mm |
| Fiberboard: | (25 × 25 × 3) mm | Eyelet Hole Diameter: | Ø4.5 mm |
| Dimensions: | (55 × 56 × 40) cm | ||
| เน้น: | SATRA TM93 shoelace abrasion tester,6-station eyelet abrasion machine,leather testing machine with warranty |
||

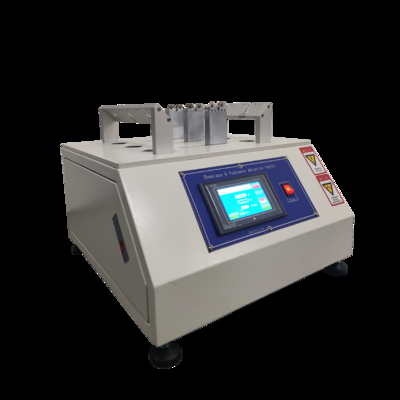

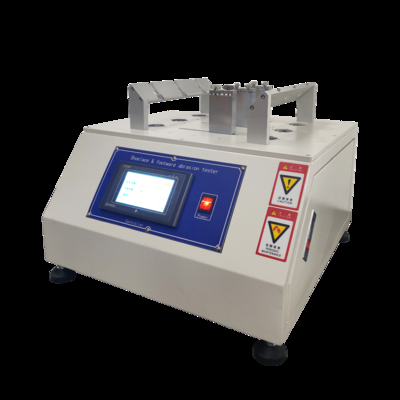

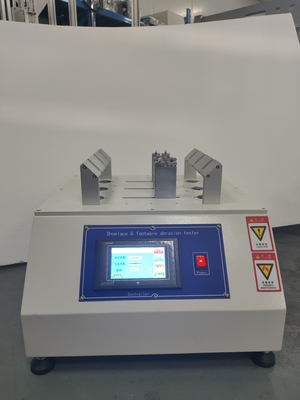

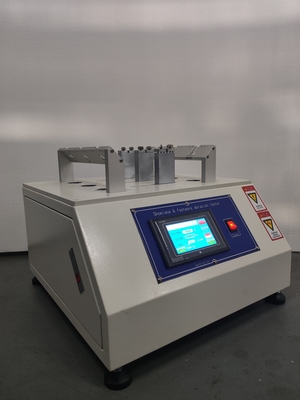

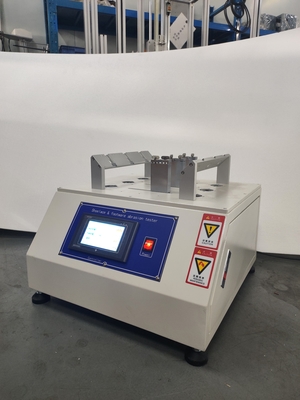

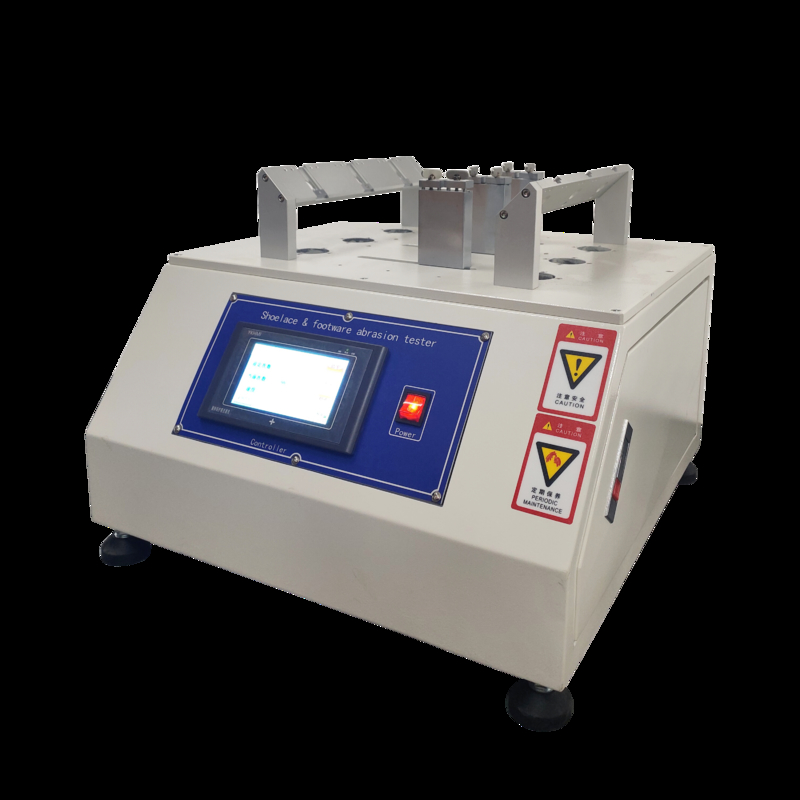

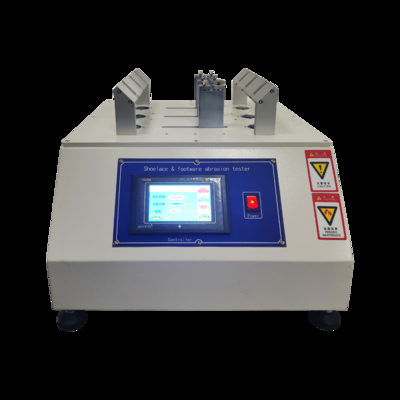

SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine
Scope of Application:
This machine is suitable for testing all types of shoelaces and eyelets. One end of the shoelace is passed through an eyelet clamped by a fiberboard, with the shoelace and eyelet positioned at a 90° angle and the fiberboard and shoelace at a 45° angle. The shoelace is then tightened under standard tension and repeatedly pulled back and forth through the eyelet. The test stops when the shoelace is damaged. The test complies with the SATRA TM93 technical standard.
| Stations | 6 groups |
| Weight | (450 ± 5) g |
| Stroke | (76 ± 2) mm |
| Fiberboard | (25 × 25 × 3) mm |
| Eyelet Hole Diameter | Ø4.5 mm |
| Dimensions | (55 × 56 × 40) cm |
| Power Supply | 1-phase, AC 220V, 3A |
